LCD Display IZOD Universal Impact Tester MCU Controlled 3.5 M/s Impact Speed

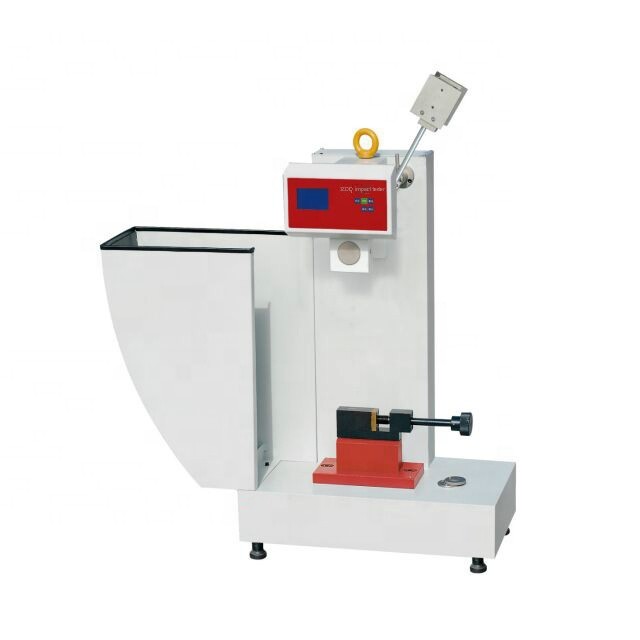

MXJU-22A MCU controlled LCD display IZOD impact test machine

MXJU-22A IZOD impact testing machine is mainly used in measuring impact toughness of non-metallic materials such as rigid plastics (including sheet, pipe, plastic profile), reinforced nylon, glass fiber reinforced plastic, ceramic, cast stone, and electrical insulation materials, etc. It is widely used in the chemical industry, scientific research units, colleges and universities quality inspection and other departments.

Standards

In accordance with standards of ISO180, GB/T1843, GB/T2611, JB/T 8761, etc.

Working principle
The specimen clamped into vertical beam is attacked by the pendulum with known energy, and destroyed by one time impact of the pendulum. The impact line is located in the center of the two supports. The energy difference of the pendulum hammer before and after impact is used to determine the energy absorbed by the specimen during failure. Then the impact strength is calculated according to the original cross-sectional area of the specimen.

1. Excellent quality
The instrument adopts high hardness and high precision bearing, which eliminates the loss caused by friction and ensures that the energy loss of friction is far less than the standard requirement.
2. Intelligent indication
According to the impact situation, it intelligently indicate the working condition, and interacts with the experimenter in real time, which guarantees the success rate of the experiment.

1. Impact energy: 1J, 2.75J, 5.5J, 11J, 22J(for customers to choose one)
2. Impact speed: 3.5 m/s
3. Maximum friction loss energy: <0.5%
4. Pendulum preparing angle: 150±1°
5. Impact center distance: 335 mm
Power supply:220V AC-15%~220V AC+10%,50 Hz (single phase, three wire)

Inner water-proof plastic film packaging

Outer plywood box for export

Shipping time: 10-20 days after payment
