5KN Single Column Rubber Tensile Testing Machine Instron Series Computer Display

Product Categories
SUZHOU KING ENTER IMPORT AND EXPORT CO., LTD.
Contact Now

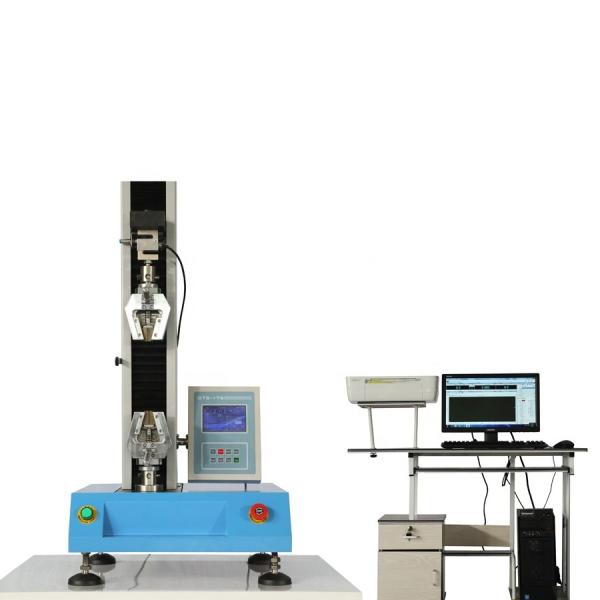

5KN Single Column Rubber Tensile Testing Machine Instron Series Computer Display

  • 1
  • 2

Place of Origin : Shandong, China (Mainland)

Brand Name : Marxtest

Model Number : ETM-5

Supply Ability : 50 Set/Sets per Month

Packaging Details : Plywood package for export

MOQ : 1 Set/Sets

Price : US $1,000-3,000 / Sets

Power : Electronic

Product name : ETM-5 5KN Single column Instron series rubber tensile testing machine

Capacity : 5 KN

Measuring range : 1%-100% FS

Accuracy : class 1 (0.5 optional)

Display : Computer

Material : rubber

Standard : ASTM E8/A370/ISO 75001

Certificate : ISO CE SGS

Weight : 95kg

Port : Qingdao or other

Contact Now

5KN Single Column Rubber Tensile Testing Machine Instron Series Computer Display



Overview
The testing machine is designed and produced for the tensile, compression, and bending tests of the rubbers, plastics, and thin films. And it is also used for the performance tests of the thin metal, wire, fiber, elastomer, foam materials.

Technical parameters

Model

ETM-5 KN

Capacity/load

5KN

Load accuracy

Class 1(Class 0.5 optional)

Load range

1%-100% FS(0.4%-100% optional)

Relative indicating error

±1.0%(Class 1), ±0.5%(Class 0.5)

Resolution

1/±300000 FS

Deformation measuring range

0.2%-100%

Stress rate

0.005%~5%FS/s

Stress rate accuracy range

When rate < 0.05% FS/s, the precision± 2%
When rate ≥ 0.005%FS/s, the precision ±0.5%

Deformation rate

0.005%~5%FS/s

Deformation rate accuracy range

When rate < 0.05% FS/s, the precision± 1%

When rate ≥ 0.005%FS/s, the precision ±0.5%

Displacement rate

0.001-600mm/min

Displacement control accuracy

Within ±0.2% of the set value

Constant load, deformation and displacement control

0.5%~100%FS

Constant load, deformation and displacement control accuracy

Preset value≥10%FN, within the ±0.1% of preset value;

Preset value<10%FN, within the ±1% of preset value

Power supply

AC 220V 50Hz( Can be customized as customers' requirements)

Crossbeam travel space

1000mm

Motor power

400W


Clamping Fixture Configuration

Tensile grips

Manual wedge fixture or hydrualic automatic clamping fixture

Round specimen clamping range

Φ4-9,9-14,14-20mm

Flat specimen clamping range

0-7,7-14,14-20mm

Compression Plate

Φ170 x 170 mm (can be customized as customer request)

Bending fixture

3-point bending fixture (4-point bending fixture is optional)

Electronic extensometer

YUU10/50



Software

  • Multi-language software with built-in English, Chinese and Russian, and user can customize their own translation freely

  • Pre-packaged test methods to help you quickly and efficiently meet the requirements of global test standards such as ASTM, ISO, DIN, EN, BS, and more

  • Intuitive expression for easy programming of testing standards and testing process

  • Testing report can be customized according to the requirement

  • User authorization: The administrator can assign different functions for different level users

  • Analysis can give typical test results like Young’s modulus, Proof stress, Yield stress, stress, strain, Tensile strength, Elongation at break, compressive strength, bending strength, etc….
