Horizontal Tensile Strength Measuring Instrument Utm Tensile Testing Machine

Name: Horizontal Tensile Strength Measuring Instrument Utm Tensile Testing Machine
Brand: Marxtest
Price: 1 USD

Horizontal Tensile Strength Measuring Instrument Utm Tensile Testing Machine Manufactures

Place of Origin : Shandong, China (Mainland)

Brand Name : Marxtest

Model Number : WL-600

Supply Ability : 10 Set/Sets per Month

Packaging Details : Plywood package for export

MOQ : 1 Set/Sets

Price : US $12,600-30,000 / Sets

Power : Hydraulic

Product name : Horizontal universal tensile testing machine/tension test bed

Max. load : 600KN

Load range : 20%-100%FS

Tensile space : 1000, 5000, 10000, 30000mm optional

Space adjustment : Bolts with each 500mm as per section

Piston speed : 0-100mm/min

No load piston speed : 200mm/min

Piston stroke : 500,1000,1500mm, or customized

Certificate : CE ISO SGS

Warranty : 14 months

Port : Qingdao or other

Contact Now

Horizontal Tensile Strength Measuring Instrument Utm Tensile Testing Machine

Application

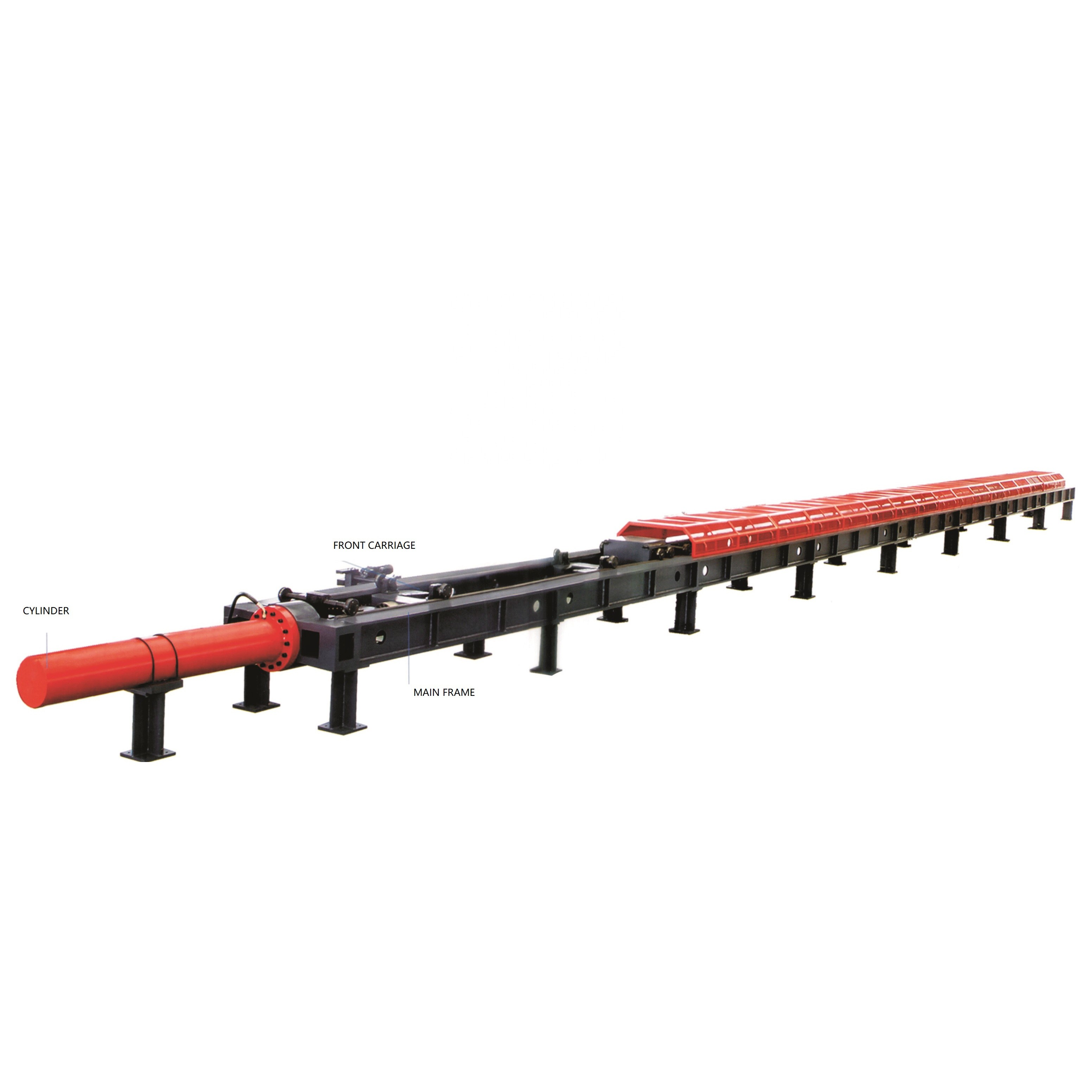

WL-300, WL-600, WL-1000 Horizontal test bed adopts horizontal structure. It is the single rod double acting piston cylinder for loading, and the computer to control the test process, the load sensor to test the load. The computer system automatically process and store the test results for the printer to print.

It is applicable in cables and electric power fittings, which is an ideal testing machine in modern production, science and research, and education.

Features

1) The main frame is welded steel plate with high structural strength, high rigidity and stable mechanical properties.
2) Reasonable fixtures for quick and convenient exchange.
3) Self-researched controller and software; integrated controller cabinet, clean and beautiful.
4) The hydraulic system adopts differential loop to maximum save the test preparation time. The oil source system adopts pressure following system, and the system pressure is increasing as the increasing load, to save the energy.

Technical parameters

Model	WL-300	WL-600	WL-1000
Max test force	300KN	600KN	1000KN
Relative error of the test force indicator	≤±1% of the indicator
Measuring range	20%-100% FS
Tensile space	1000, 5000, 10000, 30000mm optional
Space adjusting mode	Bolt fixed, 500-800mm
Piston speed	0-100mm/min
Max unload piston speed	200mm/min
Piston stroke	500,1000,1500mm, or customized
Pretension stroke	500,1000,1500,2000mm, or customized
Round specimen fixture	Φ6-26mm	Φ13-40mm	Φ13-60mm
Bolt type tension fixture	Customized
Casting fixture	Customized
Dimension	(Length deterimined by the tensile space)1100750mm		(Length deterimined by the tensile space)1300900mm

Packing & Delivery

Inner water-proof plastic film packaging

Outer plywood box for export

Shipping time: 10-20 days after payment
