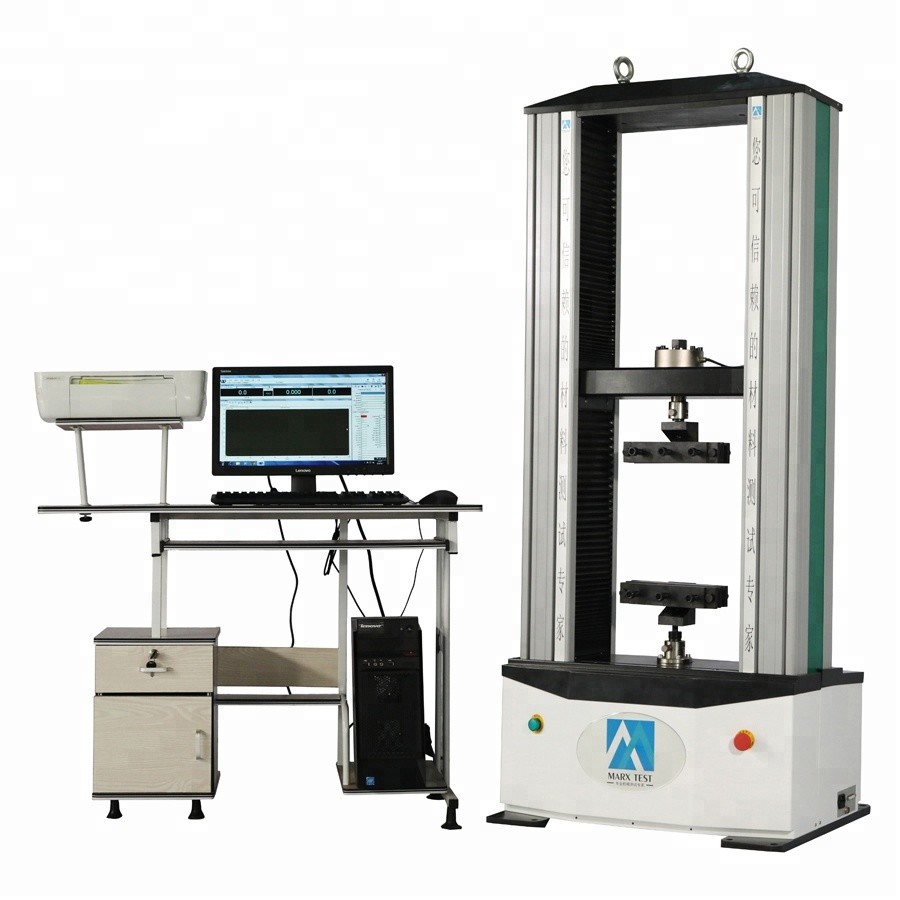

ASTM D638 Electronic 10 Ton Universal Testing Machine Computer Controlled

Name: ASTM D638 Electronic 10 Ton Universal Testing Machine Computer Controlled
Brand: Marxtest
Price: 1 USD

ASTM D638 Electronic 10 Ton Universal Testing Machine Computer Controlled Manufactures

Place of Origin : Shandong, China (Mainland)

Brand Name : Marxtest

Model Number : ETM-100

Price : US $2,500-6,500 / Sets | 1 Set/Sets (Min. Order)

MOQ : 1 Set/Sets

capacity : 100kn

Effective test width : 500mm

Power supply : AC220V 50HZ

Warranty : one year

Standard : ASTM ISO EN can customized follow yours

Certificate : CE ISO SGS

Contact Now

ASTM D638 Electronic 10 Ton Universal Testing Machine Computer Controlled

1. Application

ETM-100KN Computer Controlled Electronic Tensile Testing Equipment, Floor-standing Electromechanical Test Machine features two-column load frame that used in medium duty tensile,compression, and bending test applications for metallic,non-metallic, and composite materials. Long travel extensometer or video /non -contact extensometer can be used for the machines

This testing machines is equipped with computer, printer, and general test software, to give an accurate determination of metal the material tensile strength, yield strength, the provisions of non-proportional extension strength, elongation, elastic modulus mechanical properties. Test results can print (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time distortion - time) six kinds of curves and related test data, with the software self-test function that can self-diagnose problems. It is ideal testing equipment for the industrial and mining enterprises, scientific research units, universities, engineering quality supervision station. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining.

2. Test capability of machine and relevant Standard:
ASTM E8 - 16Standard Test Methods for Tension Testing of Metallic Materials
ISO 6892-1 Materials --tensile testing

ASTM D638 Standard Test Method for Tensile Properties of Plastics

Technical Parameters

Model	ETM-10kN	ETM-20kN	ETM-30kN	ETM-50kN	ETM-100kN
Capacity/ Load force	10kn	20kn	30kn	50kn	100kn
Load accuracy	Class 1 (class 0.5 optional)
Load range	1% - 100% FS (0.4% - 100% FS optional)
Testing Speed	0.001 - 1000 mm/min
Crosshead travel	1000mm	1000mm	1000mm	1000mm	1000mm
Effective tensil space	700mm	700mm	700mm	700 mm	700mm
Effective test width	400mm	400mm	450mm	450 mm	500mm
Load Resolution	1/300000
Deformation Measure Range	1%～100% FS
Deformation accuracy	≤±0.5%
Power Supply	AC 220V±10%, 50Hz (can be customized as customer request)

Clamping Fixture Configuration
Tensile Grips		Manual Wedge Fixture or Hydrualic Automatic Clamping Fixture
Round specimen clamping range		Φ4-9,9-14,14-20mm
Flat specimen clamping range		0-7,7-14,14-20mm
Compression Plate		Φ100 x 100 mm (can be customized as customer request)
bending fixture		3-point bending fixture (4-point bending fixture is optional)
Electronic Extensometer		YUU10/50

Single Column UTM

100N - 5KN can choose this beautiful new type single column test machine.

can test many samples: film, plastic, rubber, steel wires, wooden plate etc.

10kn / 20kn UTM

new type 10kn 20kn computerized electronic universal tensile testing machine, software can display curves: load-time, displacement-time, etc.

can test steel wires, rubber, etc.

300kn 600kn 1000kn UTM

computerized electro-hydraulic servo universal tensile compression testing machine, can test steel bars, steel plate, bolts, nuts, steel wire ropes etc.

FAQ

1. Are your company a trading one or a factory?

Factory + trading company (integration), 21 years focusing on test instruments field,

5 years exporting experience.
2. After an order is placed, when to delivery?
Generally about 15 working days, If we have inventory, we can arrange shipment within 3 working days.
Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty with after - sales services?
14 months warranty after delivery. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in
a professional and timely.
4. What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
