DWC Nitrogen Charpy Impact Cooling Chamber Charpy Chiller Low Temperature

Product Categories
SUZHOU KING ENTER IMPORT AND EXPORT CO., LTD.
Contact Now

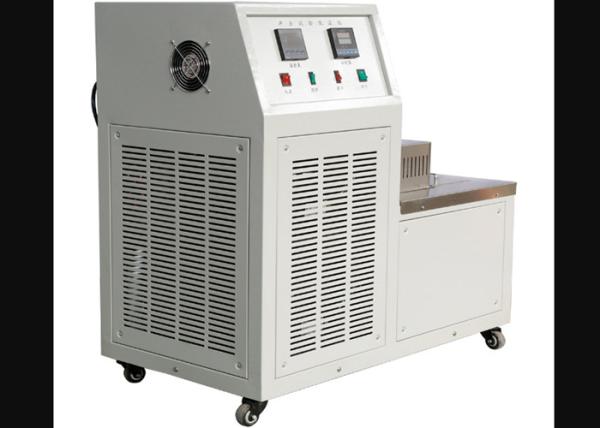

DWC Nitrogen Charpy Impact Cooling Chamber Charpy Chiller Low Temperature

  • 1
  • 2
  • 3

Brand Name : OEM / KINGENTER

Model Number : DWC-60

Certification : ISO CE SGS

Place of Origin : China (Mainland)

MOQ : 1 Set/Sets

Price : US $2,800-3,300 / Sets | 1 Set/Sets (Min. Order)

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 350 Set/Sets per Month

Delivery Time : 10 days

Packaging Details : plywood packing

Product name : Nitrogen Charpy impact Cooling Chamber

Power : Electronic

Effective working space : 120×120×80mm

Specimen dimension : 10×10×55mm

Specimen quantity : More than 60 pcs

Mode of refrigeration : Compressor refrigeration

Cooling Medium : Ethanol or other unfrozen liquid

Contact Now

DWC Nitrogen Charpy impact Cooling Chamber Charpy Chiller Low Temperature

1. Technical Parameters


Model
DWC-40
DWC-60
DWC-80
DWC-100
Temperature range
+30~-40°
+30~-60°
+30~-80°
+30~-100°
Temperature control accuracy
±0.5°
Effective working space
120×120×80mm
Specimen dimension
10×10×55mm
Specimen quantity
More than 60 pcs
Temperature dropping speed
+30°C~0°C
1.2°C/min
+30°C~0°C
1.2°C/min
+30°C~0°C
2°C/min
+30°C~0°C
2°C/min
0°c~-20°C
0.8°C/min
0°c~-20°C
1.5°C/min
0°c~-20°C
1.5°C/min
0°c~-20°C
1.5°C/min
-20°C~-40°C
0.5°C/min
-20°C~-40°C
1.0°C/min
-20°C~-60°C
1.0°C/min
-20°C~-40°C
1.0°C/min
-40°C~-60°C
0.7°C/min
-60°C~-80°C
0.7°C/min
-60°C~-100°C
0.7°C/min
Dimensions(mm)
800×510×480
800×510×480
800×510×480
800×510×480
Mode of refrigeration
Compressor refrigeration
Cooling Medium
Ethanol or other unfrozen liquid

2. Application DWC Series Temperature Chamber is designed according to the standard of 'Charpy Notch Impact Test Method for Metal Materials' and adopts compressor cooling technology, which is made up of two sections (Low temperature grade and high temperature grade). It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance.

3. Features 2.1 Imported compressor, DANFUS valve, imported evaporation-condensation machine; 2.2 Controlled by intelligent instrument, digital presentation temperature value, automatic control temperature,automatic time and alarm. 2.3 High security, refrigerate fast, large volume.

DWC Nitrogen Charpy Impact Cooling Chamber Charpy Chiller Low Temperature

FAQ:

1. Are your company a trading one or a factory?
Factory + trading company (integration), 21 years focusing on test instruments field, 15 years exporting experience.

2. After an order is placed, when to delivery?
Generally about 15 working days, If we have inventory, we can arrange shipment within 3 working days.
Please be aware that our production lead times depend on specific items and item quantities.

3. What about the warranty with after - sales services?
12 months warranty after delivery. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in
a professional and timely.

4. What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other required standards.
