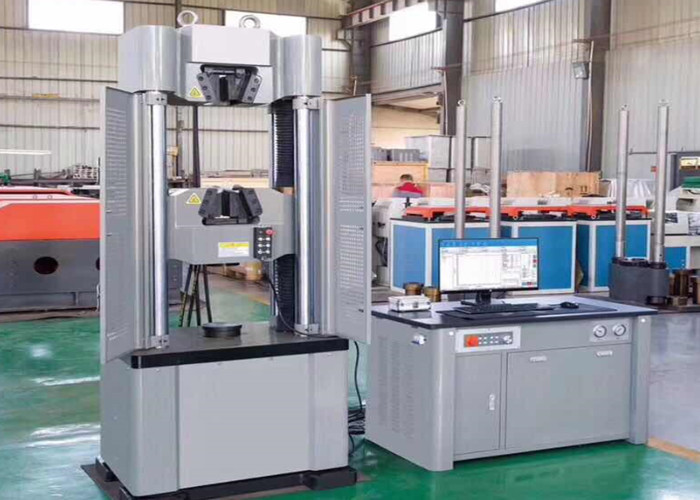

UTM-1000D 1000kN Computer Controlled Electro-Hydraulic Universal Tensile Testing Machine
- Application
Computer Controlled Electro-hydraulic Universal Tensile Testing Equipment is equipped with computer, printer, and general test software, to give an accurate determination of metal the material tensile strength, yield strength, the provisions of non-proportional extension strength, elongation, elastic modulus mechanical properties. Test results can print (force - displacement, force - deformation, stress - displacement, stress - deformation, force - time distortion - time) six kinds of curves and related test data, with the software self-test function that can self-diagnose problems. It is ideal testing equipment for the industrial and mining enterprises, scientific research units, universities, engineering quality supervision station. They are perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining.
2. Standard:
ASTM E8Standard Test Methods for Tension Testing of Metallic Materials
ASTM E4 -16 Standard Practices for Force Verification of Testing Machines
ISO6892-1:2016 Metallic materials — Tensile testing — Part 1: Method of test at room temperature
ISO75000-1:Metallic materials--Verification of static uni-axial testing machines--Part 1: Tension/compression testing machines--Verification and calibration of the force-measuring system
3. Main Technical Parameters:
| Model | UTM-1000D |
| Max.load | 1000kN |
| Load accuracy | Class 1 (class 0.5 optional) |
| Load range | 1%-100%FS (0.4%-100%FS optional) |
| Load resolution | 1/300000 |
| Deformation Measurement Range | 0.2%～100%FS |
| Deformation accuracy | ≤±1 % (≤±0.5% optional) |
| Displacement resolution | 0.01mm |
| Displacement accuracy | ≤±1 % (≤±0.5% optional) |
| Displacement error | ≤±1 % |
| Stress Control Speed | 1～45 Mpa/s |
| Stress Control Speed | 0.001～0.5 mm/s |
| Displacement Control Speed | 0.02～3 mm/s |
| Constant load, deformation and displacement control accuracy | When rate <10% FS, the precision± 1% When rate ≥ 10% FS, the precision ±0.5％ |
| Stress rate accuracy | When rate < 0.05% FS/s, the precision± 2% When rate ≥ 0.005%FS/s, the precision ±0.5％ |
| Piston Stroke | 250mm |
| Max. tension test space | 700mm |
| Max. Compression test space | 650mm |
| Column distance | 525mm |
| Clamping method | Hydraulic Automatic Clamp Fixture |
| Round specimen clamping range | Φ20-Φ60mm |
| Flat specimen clamping range | 0-40mm |
| Compression plate | Φ200mm |
| Bending roller width | 30x120mm |
| Bending span | 30-450mm |
| Power supply | 3-phase, 380V, 50HZ 2.0kw (can be customized) |
Packing size and weight
| Model | UTM-1000D |
| Main body size | 860x640x2300mm |
| Oil control cabinet | 1200x600x750mm |
| Total weight | 3500kg |
4. Main Unit Feature:
4.1 Rigid inblock cast base with fuel tank mounted under the host and upper space for tensile and lower one for compression bending or shear test
4.2 Solid Four columns and two screws design guarantees the strong stability for the machines.
4.3 chain mechanism eliminating the gap and improving the measurement performance.
4.4 Japanese imported gear pump features high pressure and low-noise
4.5 With reference to hydraulic system, the electromagnetic valve, relief valve, pressure relief valve, valve pressure and other hydraulic components are applied well-known brands. Servo valve, as the corn parts, applies Atos Brand.
4.6 Load automatic withstanding, stress, strain control, cycle control and self-programming. 4.7 Precise load sensor for guarantee accurate and stable measure
4.8 Overload protection: as test force exceeds 2%-5% of the maximum test force of each file, overload protection, it will stop.
5. Components Supply list
| Item | Name | Brand | Qty | Qty |
| 1 | Load cell | China Brand | 1 PC | |
| 2 | Oil pump | China Brand | 1 PC | |
| 3 | Motor | China Brand | 1 PC | |
| 4 | Displacement sensor | China Brand | 1 PC |
| 5 | Hydraulic seals | China Brand | 1 Set |
| 6 | Servo valve | China Brand | 1 PC | |
| 7 | Rotary encoder | China Brand | 1 PC | |
| Item | Name | Qty | |
| 1 | Four columns two ball screws load Frame | 1 SET | |
| 2 | Oil source control cabinet shell Electromagnetic proof cabinet improves the reliability and stability of the whole electric system. | 1 SET | |
| 3 | Lenovo computer | 1 PC | |
| 4 | HPA4 color ink-jet printer | 1 PC | |
| 5 | Tensile fixture Round jaws Φ20-Φ60mm Flat jaws 0-40mm | 1 SET | |
| 6 | Compression fixture: Φ200mm | 1 SET | |
| 7 | 3 point Bending fixture | 1 SET | |
| 8 | Electronic extensometer | 1 PC | |
| 9 | Servo controller STA-800 | 1 PC | |
| 10 | Smart Test software for Testing measurement and data processing | 1 SET | |
| 11 | Foundation bolts | 1 SET | |
| 12 | Red Protective Cover is optional | 1 SET | |
High accurate extensometer for wire strand
Full-bridge impedance: 350Ω
Output sensitivity: ≥1.5mv/v.
Non-linearity: ≤±0.5% FS
Bridge voltage: 3-12v
Measurement resolution: 0.001mm
6. Data Acquisition systems
61. The data acquisition system of machine consists of two high precision A/D conversion channel and the maximum resolution should be 1/300000 (minimum)
6.2. USB powered data –logger with USB 2.0 and RS- 232 pc interface, 5-keys joystick, 2MB RAM, Automatic recognition facility, Internal signal generator and 12-bit conversion resolution
7 Software (MAX TEST)
7.1 Batch and report processing program facility in doc and exl format
7.2 The software is fully compliance with the corresponding international standards like ISO, ASTM and GB standards
7.3 The control mode of software should contain constant force, constant displacement, constant deformation and others like Stress - strain, force - displacement, force - time, displacement – time
7.4 It supports multiple load cell and extensometer
7.5 Reserved data interface facility, which can be directly connected to integrated management network of laboratory.
7.6 The software is for Windows98/2000/XPAV in7 or higher
7.7 The software supports Real-time record and dynamic display test curve
7.8 The software adopts human-computer interaction to analyze and count performance indicators of materials.
7.9 The software can automatically figure-out routine data such as tensile strength, yield strength, modulus of elasticity, extend rate after rupture, non-proportional extend strength et
7.10 Getting the test results: get the ReH, ReL, Fm, Rp0.2, Rt0.5, Rm, E results automatically.
